AMG E 63 S 4MATIC+ Wagon

Exterior

Paint

Black
Not all available options shown
Build This Vehicle View Inventory

AMG E 63 S 4MATIC+ Wagon Specifications

vehicle side view dimensions model front and back view diensions

Feature Highlights

  • 5
    Passenger capacity

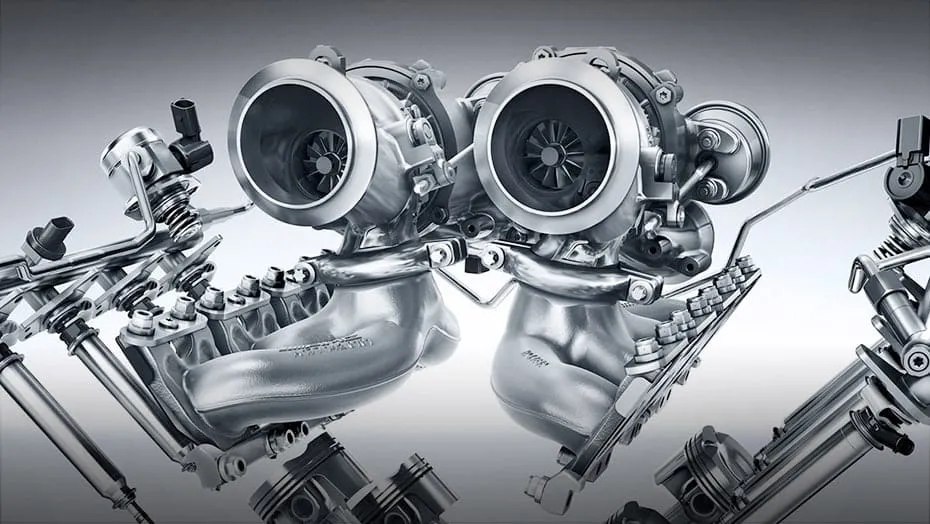

  • Handcrafted AMG 4.0L V8 biturbo
    Engine
  • 603 hp @ 5,750-6,500 rpm
    Power
  • AMG SPEEDSHIFT MCT 9-speed
    Automatic transmission
  • 640-1,820 L
    Cargo capacity
  • 3.5 sec 0-100 km/h Disclaimer**
    Acceleration
  • 15.6 L/100 km
    City fuel economy
  • 8.4 L/100 km
    Highway fuel economy

  • Overall length 4,996 mm
  • Overall height 1,474 mm
  • Wheelbase 2,939 mm
  • Width (w/mirrors) 2,065 mm
  • Width (w/o mirrors) 1,872 mm
  • Track width (front) 1,595 mm
  • Track width (rear) 1,628 mm
  • Curb weight 2,120 kg

  • Passenger capacity 5
  • Headroom (front) 1,060 mm
  • Shoulder room (front) 1,468 mm
  • Headroom (rear) 1,005 mm
  • Shoulder room (rear) 1,450 mm
  • Cargo capacity 640-1,820 L

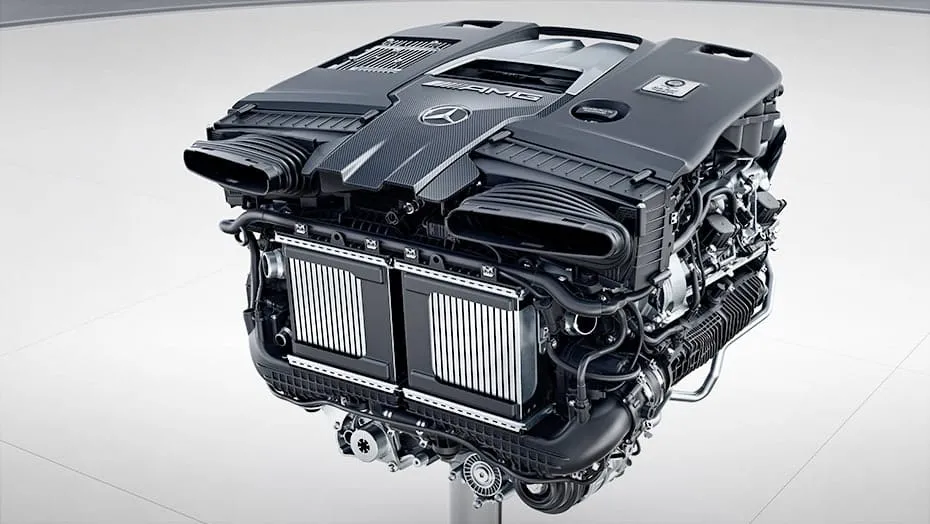

  • Engine Handcrafted AMG 4.0L V8 biturbo
  • Power 603 hp @ 5,750-6,500 rpm
  • Torque 627 lb-ft @ 2,500-4,500 rpm
  • Compression ratio TBD

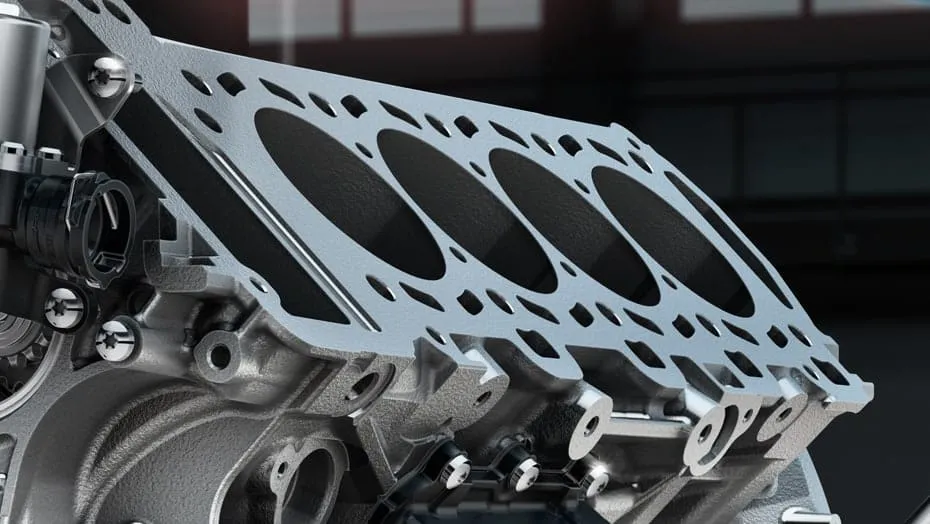

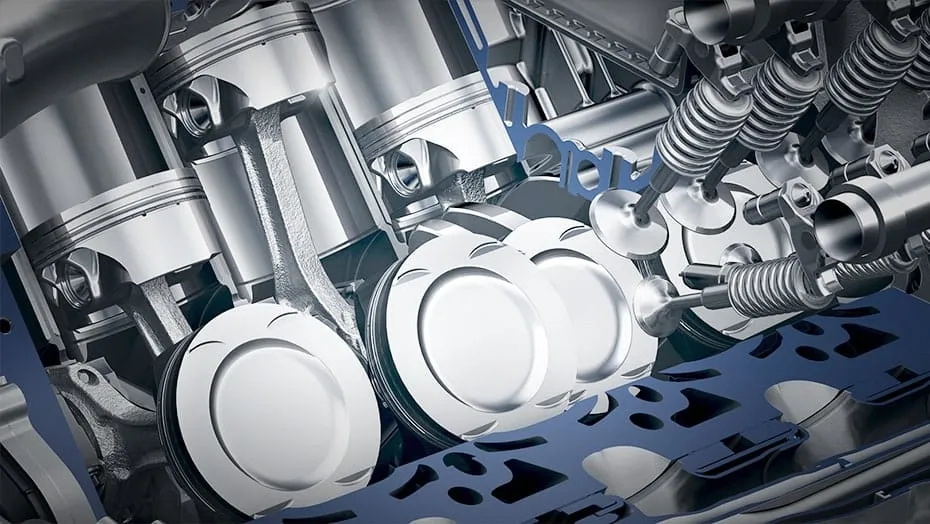

  • Construction Diecast alloy block and heads
  • Fuel requirement Premium unleaded gasoline
  • Fuel capacity 80 L

  • City fuel economy 15.6 L/100 km
  • Highway fuel economy 8.4 L/100 km
  • Emission certification Bin70

  • Automatic transmission AMG SPEEDSHIFT MCT 9-speed
  • Drive configuration AMG Performance 4MATIC+ all-wheel drive

  • Suspension Adaptive, self-leveling 4-wheel multilink with AMG RIDE CONTROL+
  • Steering type Rack-and-pinion with electromechanical power assist
  • Turning circle 12.5 m, curb to curb

  • Wheels 20-inch AMG 5-twin spoke aero (9.5x20 front and 10.0x20 rear)
  • Tires 265/35R20 front and 295/30R20 rear, summer high-performance

Key Features

THE MOST POWERFUL WAGON

Sending 603 handcrafted horsepower deftly to the pavement via variable-torque AMG Performance 4MATIC+, the redesigned E 63 S rushes further ahead. Is it a spacious supercar or a fast family car? Only one way to find out: Open it up.

Standard Features

Optional Features

Standard Features

Optional Features

Standard Features

Optional Features

Standard Features

Optional Features

Standard Features

Optional Features

Packages

Optional
AMG Stealth Package
$5,400
  • AMG Night Package
  • AMG Carbon Fibre Design elements
  • Darkened AMG grille

Optional
Premium Package
$5,600
  • Climate Comfort front seats
  • AMG Head-Up Display
  • 360 camera
  • Foot-activated tailgate release
  • Heated rear seats
  • KEYLESS-GO
  • Enhanced heated front seats
  • Heated front armrests
  • Soft-close doors

Optional
Exclusive Package
$5,800

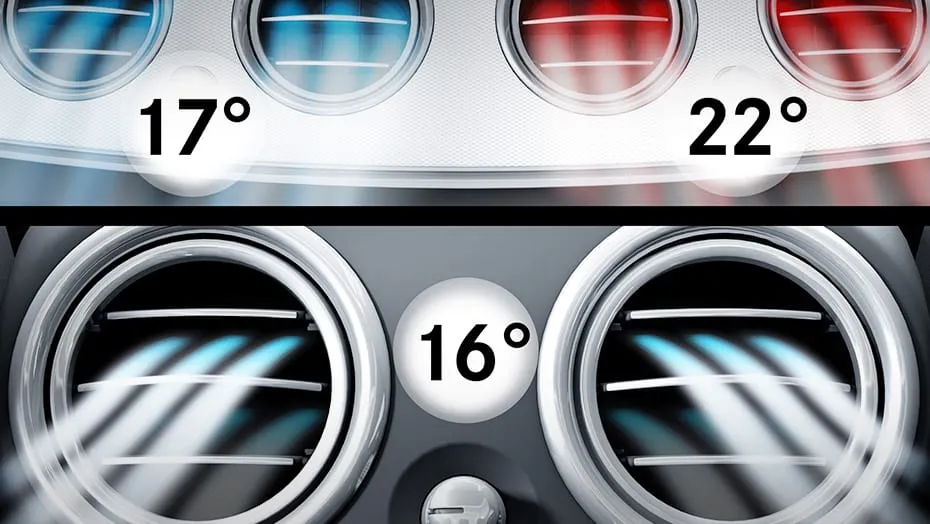

  • THERMOTRONIC 3-zone automatic climate control
  • Drive-Dynamic multicontour front seats
  • ENERGIZING Comfort
  • Air Balance system
  • MBUX Interior Assistant

Optional
Intelligent Drive Package
$3,000
  • Active Distance Assist DISTRONIC
  • Active Steering Assist
  • Evasive Steering Assist
  • Active Blind Spot Assist
  • Active Lane Keeping Assist
  • Active Lane Change Assist
  • Active Brake Assist with Cross-Traffic Function
  • Congestion Emergency Braking
  • Active Emergency Stop Assist
  • PRE-SAFE Impulse Side
  • PRE-SAFE PLUS
  • Route-based Speed Adaptation
  • Active Stop-and-Go Assist
  • Active Speed Limit Assist
  • Enhanced Stop-and-Go
